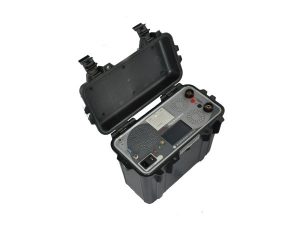

ADCR-200 Contact Resistance Tester

General information about ADCR-200 Contact Resistance Tester
ADCR-200 Contact Resistance Tester is designed to measure contact resistance of high, middle and low voltage circuit breakers, high,middle and low voltage disconnecting switches, high-current bus bar joints, cable&welding joints and etc. It is suitable for high current, micro ohm measurement.
Features:
Output high-current continuously.
Four fixed current output, 25A,50A,100A,200A.The value can be customized before placing order.
Two test modes: Routine test and Switch Resistance Test.
Test time can be user-defined.
High speed thermal printer.
User-friendly. Resistance, current, voltage, time, status and notes can be displayed. Safety and high intelligence.
Data storage and history data browsing functions, 256 sets of data can be saved.
The number of test sample and operator can be set, easy to classify the test results.
History data and switch resistance value can be inquired.
Large measuring range, up to 80mΩ.
Ambient and internal temperature can be displayed to protect the instrument.
Standard resistance value is set, to calculate the error and compare the test resistance value with standard value.
RS232 interface.(Optional)
Portable design, easy to carry.

  • PDF
  • specifications
There are no photos
false

Technical Specification of the device:
Input voltage: AC220V±10%, 60HZ ± 2%
Working temperature: -10~+50℃
Testing temperature: +15~+25℃
Storage temperature: -20℃~70℃
Relative Humidity: ≤85%RH
Cooling by air
Ingress Protection Rating: IP67
Insulation performance: >20MΩ to ground
Overall dimension: 365*165*310mm
Weight: 8kg (exclude cables bag)
