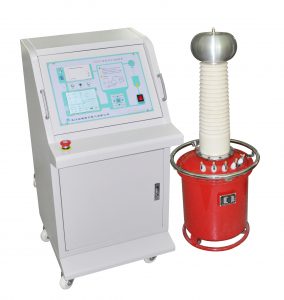

ADMH-3001D Automatic AC/DC Hipot Test Set

Latest News »
Relay Protection Tester ADRP-1400 Relay Protection Tester ADRP-1200A Primary Current Injection Test ADPA-5000A digital ultrasonic detector  ADUD-501-502-503-504

General information about ADMH-3001D Automatic AC/DC Hipot Test Set:
ADMH-3001D Series AC/DC Hipot Test Set is automatic withstand voltage test devices with advanced performance. It is used to carry out dielectric strength test under rated voltage for all kinds of electrical equipment, components and insulation materials. It checks dangerous flaws which assures electrical equipment continuous working.
Features:
Obtain voltage and current peak value.
With system diagnosis and analysis functions.
Fully automatic operation process.
Double over-current protection, more safe.
Testing process displays on one screen.
LCD screen, with extension function.

  • PDF
  • specifications
There are no photos
false

Technical Specification of the device:

Basic Specifications
Input Voltage AC 220V or AC 380±10%, 50Hz±1
Low Voltage Output AC 0-250V or AC 0-430V
LV Current 0-250A
Output Capacity 0-300kVA (Customized on demand.)
HV Voltage 0-300kV (Customized on demand.)
HV Current 0-2A
Timing Range 0-9999S
Voltage Accuracy ≤1.5%±1digit(F.S)
Current Accuracy ≤2.0%±1digit(F.S)
