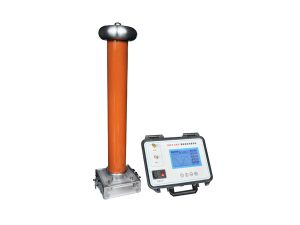

ADMH-3003A Automatic AC/DC Voltage Meter

Latest News »
Relay Protection Tester ADRP-1400 Relay Protection Tester ADRP-1200A Primary Current Injection Test ADPA-5000A digital ultrasonic detector  ADUD-501-502-503-504

General information about ADMH-3003A Automatic AC/DC Voltage Meter
ADMH-3003A Series Automatic AC/DC Voltage Meter is the upgraded version of GDFR series AC/DC voltage divider. It is automatic measuring system, reading data is more accurate.
Features:
Balance type equal potential shield structure.
Fully-sealed insulation cylinder with high-quality components, accurate and good linearity.
High accuracy and linearity, good stability and anti-interference ability.
Digital LCD screen, AC RMS and peak value can be displayed.
Inner shielded anti-interference ability, single section or separate section structure.

  • PDF
  • specifications
There are no photos
false

Technical Specification of the device:

Model no ADMH-

3003A50

ADMH-

3003A100

ADMH-

3003A150

ADMH-

3003A200

ADMH-

3003A300

ADMH-

3003A400

Voltage 50 100 150 200 300 400
impedance 650 1200 1700 2200 3500 4300
Capacitance 100-320 100-180 100-150 120 120-500 100-800
dimension 200.200 200.200 200.200 200.200 200.200 200.200
Weight 2.5 3.5 4.5 7.5 13.5 17.5
