General information about ADRP-1300T Relay Protection Tester

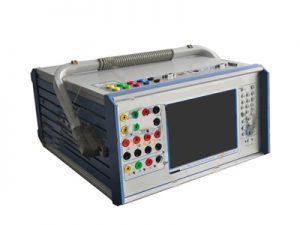

ADRP-1300T Relay Protection microcomputer test device play a key role in operating electricity power systems reliably and safely.It is the testing device used in professional field of microcomputer protection,relay protection,excitation measurement,fault recorder.
Features:
Embedded host machine, equipped with big programmed CPLD(Complex Programmable Logic Device)
12channels D/A output simultaneously in a single machine
High precise linear power amplifier,5 voltage outputs and 3 current outputs simultaneously
8inch LCD screen display.Provide with keyboard/mouse connecting port,also 2USB port,2 RS232 port,to communicate with PC and other communication devices
Easy to carry,suitable for flexible testing and wild working
Intelligent self-protection
8channels switching value input and 4channels switching value output.Input contact is idle contact and 0-250V potential contact for selectable,intelligent identification
Plentiful Binary and powerful software function
Two groups of DC power supply, 110VDC/1.0A&220VDC/0.6A,no need to set and adjust by software(Optional).

  • PDF
  • specifications
There are no photos
false

Technical specification of the device:
Main rated specification:
AC current output
Three phase AC:
Phase current output (effective value): 3*0~30A/phase
Max. output power: 260VA/phase
Max. parallel connection current output (effective value): 0~90A
Phase current allowable effective value: <10A/phase
Max.current allowable working time: <10s
Accuracy: <±0.2%
Lapped overtone times: 0-21times
DC:
Output range: -10-10Aor 3*0 — ±10A
Max.output power: 200VA
Accracy: <±0.2%
AC voltage output
AC five phase:
Phase voltage output (effective value): 5×0~130V/phase
Line voltage output (effective value): 0~260V
Max.output power: 70VA/phase
Accuracy: <±0.2%
Lapped overtone times: 0-21times
DC:
Output range: 0-300V or 5*0–±130V
Max.output power: 130VA
Accuracy: <±0.2%
Binary input
Idle contact: 1-20mA, 24V (DC)
Electric potential contact: 0-250V (DC)
Binary output
Idle contact: 250V/0.5A(DC)
Other rated specification:
Rated output:
Frequency error: <±0.01HzHz
Phase error: <±0. 2°
Waveform distortion: <±0.3% (fundamental wave)
Time error: <40µs
Output frequency: 0-1050Hz
Lapped overtone times: 0-21times
Power voltage:
Allowable range: AC220V±10%, 50Hz±10%
Ambient temperature:
Use range: 0~45℃
Storage range: -25~70℃
Time measurement:
Test range: 0.1ms~999999.999s
Cabinet dimension:
360mm(L)×195mm(W) ×375mm(H)
Cabinet weight:
host machine: 16.6kg
