ADSF-3000 Leakage Gaz Detector

Latest News »
Relay Protection Tester ADRP-1400 Relay Protection Tester ADRP-1200A Primary Current Injection Test ADPA-5000A digital ultrasonic detector  ADUD-501-502-503-504

General information about ADSF-3000 Leakage Gaz Detector

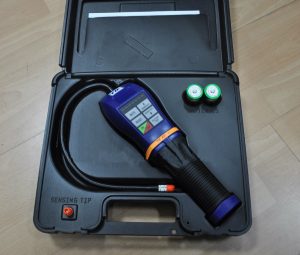

ADSF-3000 gas leak detector is used for detecting SF6 gas qualitative leakage.
Handheld, Easy to operate
Ergonomic design, Rubber cushion grip on handle
One Touch Reset and Keypad Controls
Advanced DSP
Visual leak indicators
Variable frequency audible alarm, Mute button
Flexible stainless steel probe head
Detects all halogenated refrigerants
Battery Test, Low Battery Indicator
Molded carrying case

  • PDF
  • specifications
There are no photos

Technical Specification of the device:
Ultimate sensitivity:
Sensitivity Levels: 7
Sensing Tip Life: About 20 hours
Leak Indicator: 3 color, 6 segments, 18 levels
Power Supply: 3VDC, 2 “C” alkaline batteries
Battery Test: True voltage indication
Battery Life: About 30 hours
Operating Temperature: 0 to 50℃
Probe Length: About 355mm
Dimension: About 229×57×57mm
Weight: About 560g
