ADSF-GDV SF6 Gaz Leak Detector

Latest News »
Relay Protection Tester ADRP-1400 Relay Protection Tester ADRP-1200A Primary Current Injection Test ADPA-5000A digital ultrasonic detector  ADUD-501-502-503-504

General information about ADSF-GDV SF6 Gaz Leak Detector

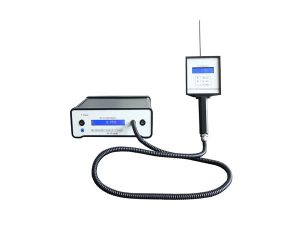

ADSF-GDV SF6 Gas Leak Detector is infrared type leak detector. It is double LCD display and real-time shows SF6 concentration. It rapidly detect SF6 breaker, GIS leakage point and yearly leakage rate qualitatively and quantitatively. It’s a good device suitable for power supply department, installation and overhaul unit, power test institute.
Features:
Non radioaction materials, easy to storage and transportation.
Few maintenance ( 1 time per 5 years), and no wear parts.
Free from the restrain of humidity content.
Used for particle filter of sensor protection.
Free from the restrain of pollutant.
Response time of internal pump only 1 second.
No need consumable.
High sensitivity which can detect SF6 gas drops to 1 ppmv in the air.

  • PDF
  • specifications
There are no photos
false

Technical Specification of the device:
MeasurementPrinciple:Double waves non-dispersive infrared spectrometer(NDIR)
MeasurementRange:0-1500ppm SF6
Sensitivity:1ppm
Repeatability:0.3%
Response Time:1s
Accuracy:0.5ppm
Storage Temperature:-40~+70℃
OperationEnvironment:Temperature:-10~+60℃, Relative humidity: ≤90%RH
SamplingMode:Built-in electromagnetic diaphragm pump, automatic suction.
