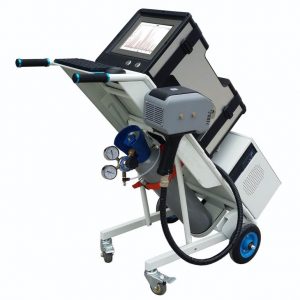

ADSP-8006MM Mobile Metal Analyzer

Latest News »
Relay Protection Tester ADRP-1400 Relay Protection Tester ADRP-1200A Primary Current Injection Test ADPA-5000A digital ultrasonic detector  ADUD-501-502-503-504

General information about ADSP-8006MM Mobile Metal Analyzer
ADSP-8006MM mobile metal analyzer is a mobile arc spark spectrometer ideal for many applications in the metal producing, processing, and recycling industries. ADSP-8006MM mobile metal analyzer has advantages of high precision and good stability of analysis, easily operation, and extensive applications, small size, light in weight. ADSP-8006MM mobile analyzer can be used in identification of materials in processing factory, structure material analysis in petrochemical equipment, and metal analysis in recycling industry.
ADSP-8006MM mobile spectrometer is metal analyzer with CCD optical technology and modern microelectronics components.
ADSP-8006MM mobile spectrometer is your choice for analysis of C, P, S, B, Sn, As and N and other non-metallic elements and other metal contents in inconvenient cutting large Metal components. It can analyze various forms of metal materials, such as: pipe, bar, valves, welds, tanks, castings and so on. The ADSP-8006MM Mobile Spectrometer can meet your analytical requirements, whether in the factory premises or outside the factory, in scrap yards, submerged submarine tanks, or on high-altitude ladders in chemical plants.
Features:
1. Europe Technology was introduced, first manufacturer of mobile metal analyzer in China, Break the technological monopoly, small volume, light-weight
2. Applied with CCD optical technology and modern microelectronic components; it is the best choice for the analysis of non-metallic elements such as C, P, S, B, Sn, As in those large metal components which are not easy to cut.
3. Can analyze all kinds of metal materials
4. Improved optical system makes it suitable for analysis needs under various circumstances, no matter outside or high altitude. High accuracy and stability.
5. Integrated design, portable, can be divided for transportation
6. Battery pack can be used for CCD, hundreds of excitation for once charge
7. Typical Pashce-Runge Structure
8. Core parts are from top global suppliers, ensure the optical performance
9. HEPS digital spark light source improves the stability of discharging, ensures the analysis accuracy.
10. High-end ARM processor, high-speed data collection and process synchronously, only 20 seconds is needed for one analysis
11. Optimized data stability and good data consistency for analysis in different periods.
12. It is free to extend curves, change or add channel in same matrix. Hard configuration is not needed for adding new matrix, free technical support and software update
13. Simple and elegant outlook design, optimized property, cost-effective, low energy consumption
14. Focus on customer requirements, offer in-time after-sale service

  • PDF
  • specifications
There are no photos
false

Technical Specification of the device:
Optical System Optical Structure Pachen-Rounge Mount
Diameter of Rowland Circle 350mm
Wavelength Range 170nm-650nm
Detector CCD(charge-coupled device)
Pixel Resolution 30pm
Full Spectrum Cover the whole element analysis
Light source system Type HEPS digital spark light source
Spark Frequency 100-1000Hz
Plasma Current 1-80A
Ignition Voltage >8000V
Excitation Stand Jet electrode technology reduces the argon gas consumption, increasing the use efficiency of the argon gas
Good heat dissipation, Excitation temperation increase was less than 5℃ for 100 times excitation continually
Ensure the accuracy of the analysis under the condition of heavy load data
Others Analysis Matrix Fe base, Al base, Cu base, Ni base, Mg base, Pb base
Host dimension 600mm(L)*345mm(W)*345mm(H)
Lorry dimension 1400mm(L)*640mm(W)*250mm(H)
Excitation gun dimension 400mm(L)*350mm(W)*150mm(H)
Weight Host: 25kg, Lorry: 20kg, Excitation gun: 2.5kg
Runing Temperature 10℃-30℃
Relative humidity ≤85%
Power AC220V / 50Hz
Power consumption Excitation: 300W, Stand by: 100W
Argon Quality 99.999%, Argon Pressure≥4MPa
Argon Consumption 6L/min during spark mode
