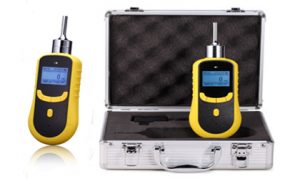

ADGD-6007IM Infrared methane CH4 Gas Detector

Latest News »
ADTC-950 INTELLIGENT DRY BLOCK TEMPERATURE CALIBRATOR ADFC-1000 plus High-Precision Multifunctional Process Calibrator ADPC-800 Series process calibrator Adleer ADTC-750 Series Temperature Calibrator

General information about ADGD-6007IM Infrared methane CH4 Gas Detector:
Application:
1. Furniture, flooring, wallpaper, paint, gardening, interior decoration and renovation, dyes, paper, pharmaceutical, medical, food, corrosion
2. Disinfection, chemical fertilizers, resins, adhesives and pesticides, raw materials, samples, process and breeding plants, waste treatment plants, perm places
3. Biopharmaceutical production workshops, home environment, livestock breeding, greenhouse cultivation, storage and logistics, brewing fermentation, agricultural production.
Function:
1. Monitoring of the environment, or the concentration of methane CH4 in a confined space and give an alarm
2. With self-check function, zero calibration function, so that gas monitoring more accurate and reliable
3. One key to restore the factory settings, can be removed from misuse problems
4. With temperature and pressure compensation, to achieve the perfect, different
temperature and pressure environment, the gas concentration compensation
5. Two sound and light alarm, alarm point can be set their own
6. Large-capacity lithium polymer rechargeable battery
7. Pump suction sampling, adjustable suction pump
8. Shell with high-strength special engineering plastics, non-slip, waterproof, dustproof, explosion
9. Exquisite upscale aluminum suitcase
Feature:
1. Using imported high-precision Infrared principles sensor
2. USB interface high speed data transmission, can be downloaded print data (optional)
3. LCD dot matrix display technology, can display the type of gas, the gas unit, gas concentration values, measured maximum, local time, ambient temperature, etc.
4. Support Chinese and English operation interface, easy to switch
5. Gas concentration unit PPM, mg/m3 can quickly switch display
6. Built-in micro sampling pump, the pump suction size ten stalls adjustable
7. Explosion-proof certification, proof grade: Exia II CT4

  • PDF
  • specifications
There are no photos
false

Technical Specification of the device:
Gas Detected:methane CH4
Detection principle:Infrared principles
Sampling Method:Pump- suction, flow up 1L/min, pump suction size ten stalls adjustable
Measure Range:0-5%VOL, 0-10%VOL, 0-20%VOL, 0-50%VOL, 0-100%VOL
Resolution:0.01%VOL(0-5%VOL,0-10%VOL,0-20%VOL), 0.1%VOL (0-50%VOL, 0-100%VOL)
Precision:2% FS
Signal Output:USB interface high speed data transmission, can be downloaded print data (optional)100,000 sets of data can be stored, can select the storage interval, the minimum is 5S,computer can be connected directly download and print historical data
Response Time:≤ 10S
Repeatability:≤ ± 1%
Zero shift:≤ ± 1% (F.S / Year)
Operating language:Support in English
Temperature:-40 ℃ ~ 70 ℃
Explosion-Proof;Exia Ⅱ CT4
Alarm mode:Sound, light, vibration
Dimensions:205*75*32mm
Recovery Time:≤ 10S
Linearity error:≤ ± 1%
Display:LCD dot matrix display technology
Gas unit:Support for multiple gas unit switch display
Humidity:0-95% RH
Degree of protection:IP66
Operating time:100 hours (off pump)
Weight(net/gross):300g/800g
