General information about Robotic Propelled Drain Camera Systems Sewer Robotic Tractor System AD-R2036S

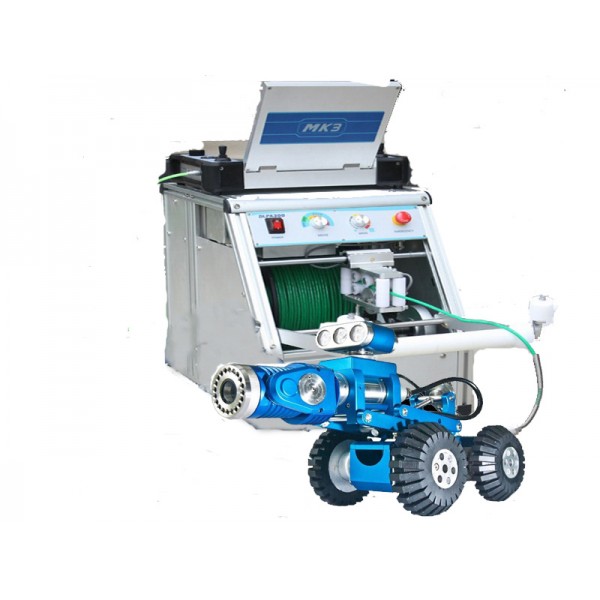

AD-R2036S Pipe Crawler is a portable all-in-one device for inspecting pipelines with diameters from 150 to 600 mm (6″-24″). It features dependable, sturdy, highly adjustable design offering users ultimate inspection experience and true portability. It is one of the most sophisticated and efficient, yet easy-to-use and affordable devices in the market.
The pipe inspection robot includes several modules that are easy to transport and assemble: pan-tilt-zoom camera, insertion cable, controler, cable reel and crawler. Optional accessories are available on request.The pan-tilt-zoom camera with continuous rotation is equipped with a 0.01 lux sensitive, high-definition CCD anti-fogging camera and laser scale, provides high-quality well-rounded image of pipeline interior. The camera is with pan 360degree rotaion, tilt 180 degree rotation, 120 times zoom, auto focuse, embeded LED light, pressure sensor and laser scale for crack width measurement.
The crawler is with 2*20 DC motor and adjustable speed, and can climb about 50 degree acoording to different pipe status. The crawler also with the inclination that can measure scope ±45 degree, pressure indication for pressure prompt and rear camera inspecting crawler backwards.
The controller is with 8inch color LCD screen and Win7 system, the screen can see the defects inside the pipes clearly under sunlight. It is built-in 128G SSD hard disk and record image in JPG, video in AVI format. The controller controls the crawlers speed, direction, light intensity, camera focus, rotation, camera movement, clutch control, auxiliary light controls. The controller is with keyboard for text writing. The system also be able to communicate with mobile, you can control the wholt system by mobile.
The pipe video software inside the system can help you review the info you want, suzh as data, video, inclination, pressure and camera status.
The automatic cable drum is with 200m standard cable, and 300m optional. Manual cable drum optional.

  • Picture
  • PDF
  • specifications
false

Technical specification of the device:

PTZ camera:
This camera is equipped with a lamp ring which is powered independently of the camera.
Anti-fogging camera lens
The pan, tilt, zoom camera can be tilted in both directions. Vertical: ±90°, horizontal: ±360°
High resolution CCD camera, light sensitivity 0.01LUX(star), 0LUX (sensed infrared)
120 times zooming: 10:1 optical zoom, 12:1 digital zoom
Auto focusing, manual adjustable is available
Resolution: NTSC: 530 (TV Lines)
360 degree rotation, one key center function
laser measurement gauge
Crawler:
Suitable pipe diameter: 100mm~600mm
Drive: two* 20 DC motor
Inclination: mesurement scope ±45 degree, pecision 0.1 degree
Speed: adjustable speed, max. 32m/min
Direction: forward, backward, left, right
Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
Climbing: max. climb degree about 50° according to diffrerent pipe status
Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Water proof: to IP68
Working temperature: -10ºC~50ºC
Controller:
Controls the crawlers speed, direction, light intensity,
camera focus, rotation, camera movement, clutch control,
auxiliary light controls.
Displays: Date, time, inclination, data, with text editing
facility.
8inch color LCD screen and Win7 system
built-in 128G SSD hard disk and record image in JPG, video in AVI format
keyboard for text writing
AC 110V, 60Hz, NTSC/PAL modes
Remote control app. Available.
The pipe video software inside the system can help you review the info you want, suzh as data, video, inclination, pressure and camera status.
Weight: 18kg,
Dimension: 510mm*485mm*295mm
Auto cable reel:
Automatic cable drum, three modes to allow for the drum to wind up when the Crawler is not moving and vice versa, mode 3: cable retrieving only
Standard cable length 200m, 300m is available.
6mm, multi-core cable, with Polyurethane sleeve and Kevlar reinforced.
Adjustable handle for ease of transportation
Weight: Approx. 50kg
4”wheel set(4pcs):
ID:135mm
For 150-600mm pipe
3”wheel set(6pcs):
ID:86mm
For 150-300mm pipe
Toos and Accessories(set):
Including wheels, manhole hook, special rope, guide pulley, etc.
